Ceramic Boron Nitride Setters For Sintering Nitride Ceramics

BN setters

Due to Boron Nitride’s high purity, non-adhesive and long working life, it’s a good choice used for sintering Aluminum Nitride and Silicon Nitride substrates. And it won’t make pollution for the sintering process.

Hexagonal Boron Nitride has a low expansion coefficient and high thermal conductivity, so it has excellent thermal shock resistance, and it will not be damaged even after hundreds of times of cycle use at 2000°C. The expansion coefficient of BN is equivalent to that of quartz, but the thermal conductivity is 10 times that of quartz.

Features of Boron Nitride:

  • High purity with 99.7%
  • Quality stable in mass production
  • No deformation in high temperature
  • Max working temperature is over 2100°C
  • Resist high heat shock

All the features make Boron Nitride a very good material for the sintering field. Our Boron Nitride is an alternative for Denka NB-1000.

The advantages for choosing us:

  • Competitive price
  • Short delivery time (20-35 days)
  • Stable quality
  • Do adjustments very quickly due to customers’ feedback on quality.
  • The max dimension we can make: 500×500 mm

What Are The Advantages of MgO-ZrO2 Ceramic?

MgO ring

Magnesium oxide Zirconia ceramics have high oxygen ion conductivity, high strength and toughness, and good thermal shock resistance. It is a promising high-temperature functional and structural ceramic material. Magnesium oxide is used as a stabilizer. The cubic phase material is packed into tiny tetragonal deposits and thus has a very high transformation toughness. The fracture toughness of magnesium oxide Zirconia is high.

It has excellent mechanical properties, including high strength, fracture toughness, wear resistance, low thermal conductivity, and good thermal shock resistance. Because of its resistance to wear and corrosion, it is mainly used in valves, pumps, and gaskets, and is also used in chemical processing and petrochemical industries.

MgO-ZrO2 ceramic main features:

  • Excellent fracture toughness
  • Good wear resistance
  • Good corrosion resistance
  • Good thermal shock

MgO-ZrO2 ceramic main application:

  • Pump parts
  • Valve components
  • Bearings

Ceramic Snap-Off blade

Ceramic Snap-Off blade

These blades were designed to fit into a common blade holder. The 11-point Snap-off Blade is a wonderful accessory to the accurate tool. Because these blades are made with quality sharpened zirconia ceramic, you can make cuts knowing that these blades have high hardness and can bear pressure.

Ceramic Blades have following advantages:

  • never rusts, no special oil coating or maintenance
  • light weight
  • Very sharp
  • Long Lasting, stay edge and sharp
  • Non-magnetic
  • Non-sparking
  • non-conductive
  • Corrosion resistant

Alumina ceramic substrates for the automotive industry

Alumina ceramic substrates for automautive industry

Alumina ceramics is a ceramic material with a-Al2O3 as the main crystalline phase. Because of its high melting point, high hardness, heat resistance, corrosion resistance, and electrical insulation characteristics, it can be used under harsher conditions. Alumina ceramics have competitive prices and mature production technology. It is currently one of the ceramic materials with the largest output and the widest application range. It is mainly used in the fields of cutting tools, wear-resistant parts, and bio-ceramics. In addition, it is also widely used in energy, aerospace, chemical, chemical, and electronic fields. In particular, 95% and 99% alumina ceramic components, whether in structural ceramics or electronic ceramics, are some of the most widely used and most used ceramic materials.

Such Alumina ceramic substrates now are widely used in the automotive industry, especially the large ceramic substrate. Innovacera are specializing in alumina ceramic substrates, the max size of AL2O3 ceramic substrates Innovacera made is 380*200*1 mm (0.8 mm and 0.635 mm thickness are also available). The substrates are part of a specific brazing process, used as spacers during thermal treatment.

Helix Pyrolytic Boron Nitride APBN Support Rods for TWT

Helix Pyrolytic Boron Nitride APBN Support Rods for TWT

Innovacera are specializing in customized Pyrolytic Boron Nitride components such as plate, disc, helix rod, and so on.

The Helix Pyrolytic Boron Nitride APBN Support Rods is widely used for Traveling Wave Tube (TWT) because of its directional thermal conductivity and ability to provide optimal “heat spreading”, pyrolytic boron nitride demonstrates improved temperature uniformity. Resistant to thermal shock, pyrolytic boron nitride is good as a sealant and protects graphite from corrosive atmospheres including most molten metals, acids, and hot ammonia environments. Pyrolytic boron nitride provides extremely effective as an electrical insulator.

Innovacera Pyrolytic boron nitride parts application is as below:

  • Compound semiconductor crystal growth(VGF, LEC Crucible)
  • Molecular Beam Epitaxy(MBE) Crucible
  • MOCVD Heater
  • PBN Infrared Window
  • Wafer processing
  • Electronic assembly
  • Traveling Wave Tube (TWT) (PBN Support Rod)
  • Metallurgical applications
  • Thin film manufacturing
  • PBN Coating Graphite
  • High temperature, vacuum equipment insulator

2022 Spring Festival Holiday Notice

Dear Customers and Partners,

Thank you all for giving our company full support in 2021. The Spring Festival of 2022 is approaching, all the staff of Innovacera company wish you a happy Spring Festival and good luck in the year of the Tiger!

Please be informed that our office will be closed from Friday, 28th January 2022 to Monday, 7th February 2022 for Lunar Chinese New Year.

Our office will resume operation on Tuesday, 8th February 2022.

We’re sorry for any inconvenience that occurred, please do drop us an email at sales@innovacera.com or call us at +0086 592 558 9730 if you have urgent matters.

Our Management & Staff would like to take this opportunity to thank all our customers and business partners for your continuous support over the past years and also wish everyone:

A Very Happy & Prosperous Tiger Year Ahead!

The INNOVACERA Team
12th Jan, 2022

INNOVACERA 2022 Spring Festival Holiday Notice

What’s Alumina production in 2021?

Alumina Ceramic Plate Alumina ceramic parts

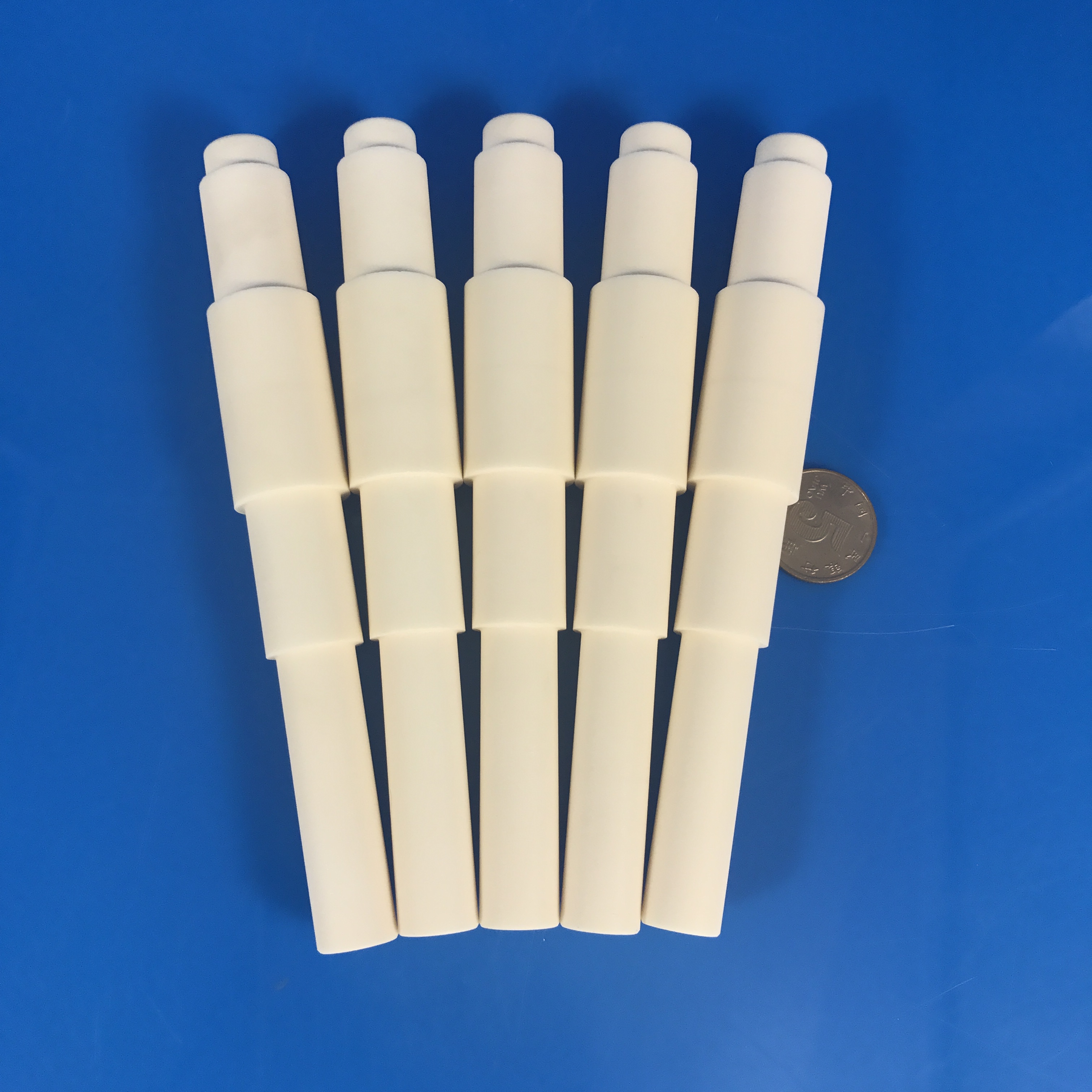

High Hardness Insulation 95% Alumina Ceramic Screw And Nut 99 Alumina Ceramic High Speed Shaft Rotor

In recent years, global alumina production has grown rapidly. In 2020, global alumina production reached 134,432 kilotons, an increase of 2,522 kilotons from 2019, a year-on-year increase of 1.9%.

The monthly global alumina production in the first half of 2021 was significantly higher than that in the same period in 2020. The global alumina market has fully recovered. In June 2021, the global alumina production was 11,695 kilotons, an increase of 705 kilotons over the same period in 2020.

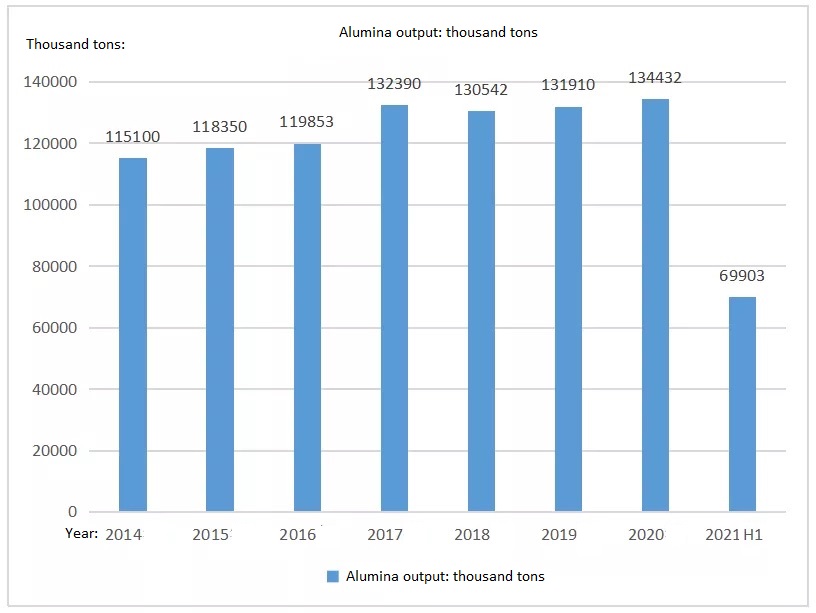

Below is the statistics chart of global alumina production from 2014 to the first half of 2021:
the statistics chart of global alumina production in 2014 to the first half of 2021

With the continuous improvement of alumina production technologies in various countries, the global average daily output of alumina has increased significantly. In 2020, the global average daily output of alumina reached 367 kilotons/day, an increase of 5.9 kilotons/day from 2019, an increase of 1.6% year-on-year In the first half of 2021, the global daily average output of alumina was 386.2 kilotons per day.

In the first half of 2021, China’s alumina production accounted for 53.73% of the global total alumina production, a very large proportion; Oceania’s alumina production accounted for 15.07% of the global alumina production; Africa and Asia (excluding China) accounted for the global alumina production 9.23% of the total alumina production; South America’s alumina production accounted for 9.08% of the global alumina production; Western Europe’s alumina production accounted for 3.99% of the global alumina production; Eastern and Central Europe’s alumina production accounted for the world’s total alumina production 3.38%; North American alumina production accounts for 1.84% of global alumina production.

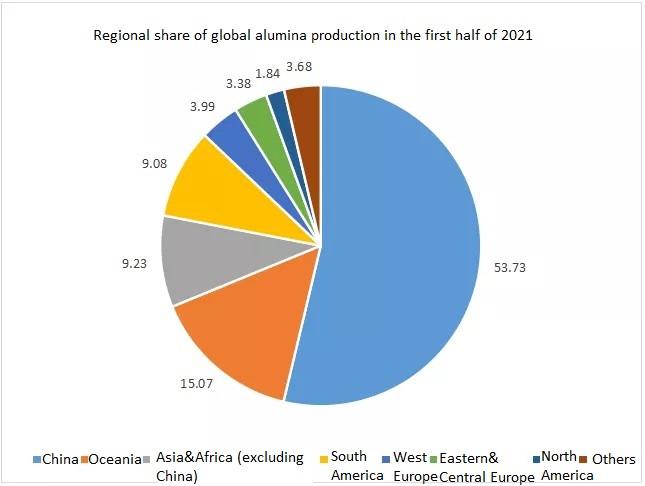

Regional share of global alumina production in the first half of 2021

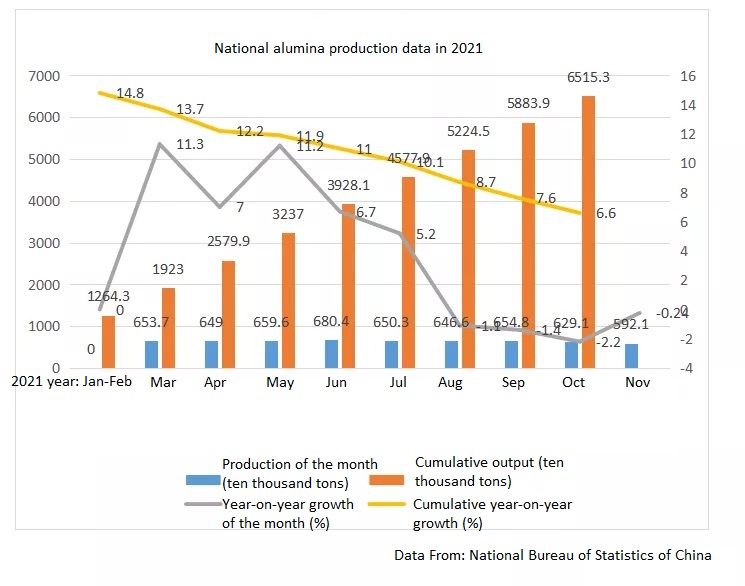

The data learned from the National Bureau of Statistics of China show that from January to October 2021, the cumulative data of national alumina production reached 65.153 million tons. The output in a single month in November was 5.921 million tons. Below picture is the output of alumina from January to October 2021.
the output of alumina from January to October 2021.

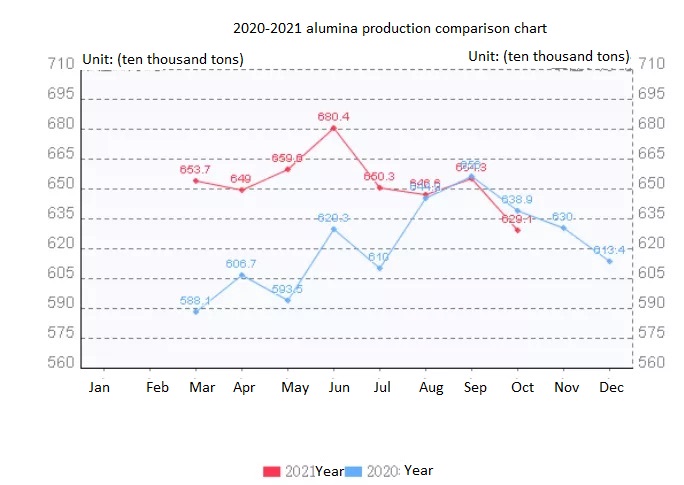

2020-2021 alumina production comparison chart

China’s alumina imports are mainly distributed in Fujian, Shanghai, Beijing, Inner Mongolia, Liaoning, Shandong, Henan, Jiangsu, Xinjiang, Zhejiang, Chongqing, and other places. Among them, Fujian, Shanghai, and Beijing continue to rank among the top three import provinces in alumina imports, and Fujian’s alumina imports accounted for 23.56%.
Alumina domestic import data From January to October 2021

(Data From: National Bureau of Statistics of China, Customs Net, etc.)

PBN-PG Composite Heating Elements

PBN-PG-Heater-Element PBN-PG-Heater-Element

High purity and high-performance pyrolytic boron nitride are used as the substrate for the PBN heating element. Pyrolytic graphite (PG) is placed on the surface of PBN plates by the CVD method as a conductor and heater.

As both PG and PBN are extremely pure and very stable in a vacuum or inert atmosphere, the PBN-PG heating element could be very durable and keep the chamber clean. It could be heated to 1600°C in a very short time without the emission of any gas component. These heating elements are ideal products for the semiconductor industry and applications that require high temperature, high vacuum, and high purity.

PBN/PG Composite Heating Elements Specifications

Size 1″-4″
Bulk Density 2.15-2.19 g/cm3
Max. Working Temperature 2400°C
Volume Resistivity (Ω·cm) 3.11*1011
Flexural Strength (Mpa) 243.63
Thermal Conductivity (W/M·k) 43.7-60
Dielectric Strength (at room temperature) KV/mm 56
